Status Lights

Power

Off = No power
Blue = Your router has power

DSL

Off = Your router doesn't have a DSL connection or their is no line sync.
Blue = Your router has a DSL connection. This light flashed during the initial connection.

Internet

Off = Your router is offline. There may be a problem with the modem settings or the PPP username and password may be incorrect.
Blue = Your router is online.

2.4GHz & 5GHz

Off = 2.4GHz/5GHz Wi-Fi is turned off.
Blue = 2.4GHz/5GHz Wi-Fi is turned on.

WPS

Off = Wi-Fi Protected Setup (WPS) isn't currently being used.
Blue = This light flashes when a WiFi device is trying to connect via WPS, and will stay on for about 5 minutes after a successful connection.

WAN

Off = Nothing is plugged into the WAN port.
Blue = A device is plugged into the WAN port.

LAN 1-4

Off = Nothing is plugged into the LAN ports.
Blue = At least one device is plugged into the LAN ports.

Phone

Off = You don't have a Voice (VoIP) phone service.
Blue = Your Voice (VoIP) phone is online.

USB

Off = Nothing is plugged into the USB port.
Blue = A device is plugged into the USB port. This light flashes when a new USB device is connected, and when data is being transferred.

Set-up Instructions

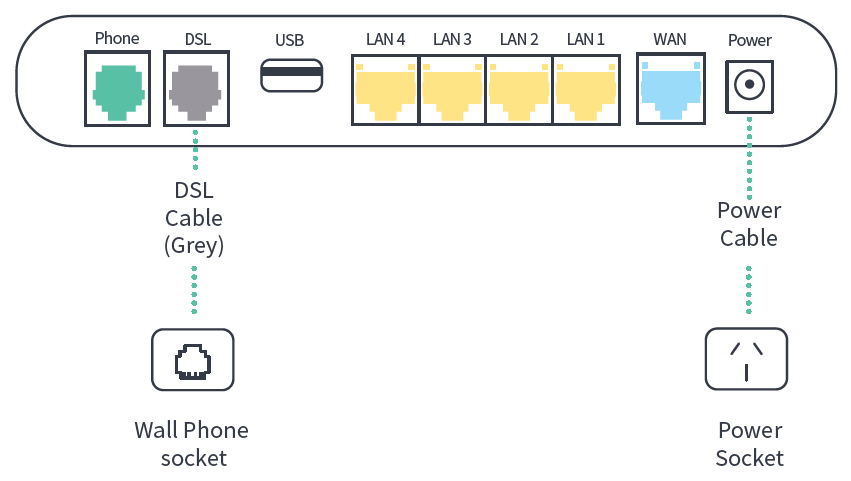

Fibre to the Node (FTTN) or Fibre to the Building (FTTB)

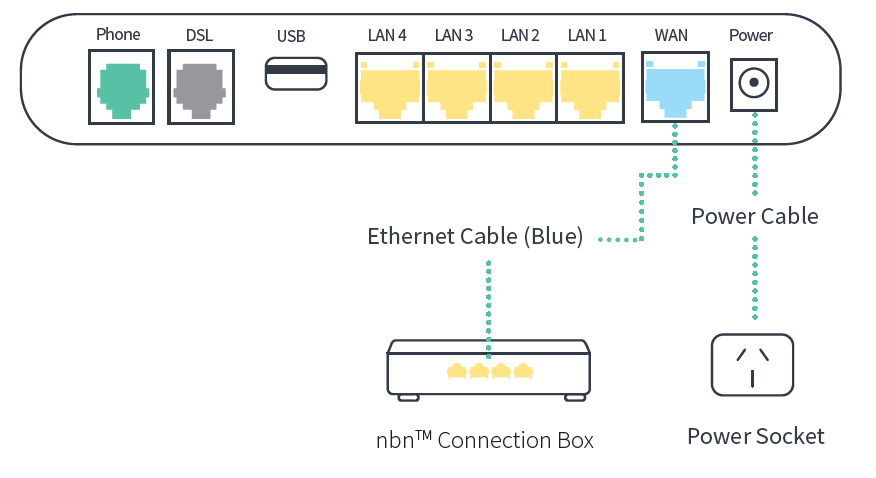

Fibre to the Premise (FTTP) or Fixed Wireless (FW)

PPPoE Username and Password
